Draw Guide 26.2

Chapter 7,
Working with 3D Objects

Introduction

LibreOffice Draw does not have the same functionality available as in other drawing or image editing programs, but can produce and edit 3D drawings. Using Draw, 3D scenes and extruded 3D shapes are created and edited. Depending 3D type selected, there are possibilities for further editing of objects (rotation, illumination, perspective, and so on).

• Extruded 3D shapes are simpler to create and edit.

• 3D scenes allow for greater customization.

3D object types

3D scenes

3D scenes are created from objects using dimensions for the x, y, and z coordinates and contain object types, such as cube, sphere, extrusion object or rotation object. These object types do not exist outside a 3D scene.

The Status Bar displays 3D scene selected (Figure 1) when it is selected and has been created from a 2D object using body rotation or conversion. Alternatively, it is a ready-made 3D object that has been inserted into a drawing.

A 3D scene is similar to a group. Just like a group, a 3D scene is entered for editing individual objects within a 3D scene and exited after editing is completed. See Chapter 5, Combining Multiple Objects for more information on entering, editing and exiting groups.

When a 3D scene is created from a selection of several 2D objects, a group is automatically created as a single 3D scene. Enter this 3D scene so that individual objects within the 3D scene can be changed, edited and rotated.

• Notes

Individual objects cannot be ungrouped when a 3D scene has been created from a selection of 2D objects.
Toggle Extrusion is only used when a 2D shape, or a 3D object that has been extruded from a 2D shape, or an object from the Fontwork Gallery is selected in a drawing. Toggle Extrusion cannot be used for text, lines, arrows, curves, and polygons.

3D shapes

2D shapes are flat with only width and height dimensions, but 3D shapes are solid objects that have a depth, width, and height. A 3D shape is created when a 2D shape or an object from the Fontwork Gallery is converted to 3D using Toggle Extrusion. The Status Bar displays Shape selected when this type of 3D object is selected (Figure 2). 3D shapes are viewed and edited in 3D or 2D mode. To edit in 2D mode, switch off extrusion, make the editing changes, then switch back to 3D mode using Toggle Extrusion.

Creating 3D objects

• Notes

Before creating 3D objects in a drawing, it is recommended that the extra 3D tools (To 3D; To 3D Rotation Object; Toggle Extrusion) are added to the Drawing toolbar using Visible Buttons or the Customize dialog. For more information on using Visible Buttons and the Customize dialog, see Appendix B, Toolbars and the Getting Started Guide.
After installing the 3D tools onto the Drawing toolbar, the tools only become available for use when a 2D object is selected in a drawing.
Ready made 3D objects can be repositioned, resized, and edited in the same way as 2D objects. See Chapter 3, Working with Objects for more information.

3D ready made objects

3D ready made objects are 3D scenes inserted into a drawing using one of the following methods. The selection and drawing of 3D objects is the same for all methods of inserting a 3D ready made object.

• Click on the triangle ▼ to the right of 3D Objects on the Drawing toolbar (Figure 3) and select a 3D object from the sub-toolbar that opens.

• Go to View > Toolbars > 3D-Objects on the Menu bar to open the 3D-Objects toolbar (Figure 4). This toolbar has the same options available as the 3D Objects sub-toolbar on the Drawing toolbar.

• Go to Shapes > Insert > 3D Objects on the Menu bar and select a 3D object from the submenu.

• Go to the 3D Objects panel in the Shapes deck on the Sidebar (Figure 5) and select a 3D object.

Converting 2D objects

Conversion tools for converting a 2D object into a 3D object are available as follows:

• On the Drawing toolbar.

• On the Transformations toolbar.

• Right-clicking on the object and selecting from the context menu.

• Go to Shape on the main Menu bar and select Transformations or Convert from the context menu.

• Using the 3D Effects dialog.

To convert a 2D object into a 3D object use one of the following tools.

To 3D

Creates a 3D scene containing an extrusion object (Figure 6).

To 3D Rotation Object

Creates a 3D scene using a default rotation axis. The position of the default axis cannot be adjusted (Figure 7).

In 3D Rotation Object

Creates a 3D scene using a rotation axis. The position of the rotation axis can be adjusted to create different 3D objects (Figure 8).

Toggle Extrusion

Creates a 3D shape by extruding a 2D object into 3D. Only 3D shapes that have been extruded can be converted back to a 2D object (Figure 9).

Convert To Rotation Object

Available in the 3D Effects dialog. Converts a selected 2D object into a 3D rotation object. Also, selecting several ungrouped 2D objects can be converted into a single 3D rotation object. For more information, see “3D effects” below.

Extrusion

Extrusion converts a 2D object into a 3D scene by extruding a 2D object toward the observer. The scene is rotated by 20 degrees around the horizontal axis to make the 3D effect more visible. After selecting a 2D object, convert it to a 3D scene using one of the following methods:

• Right-click on the 2D object and select Convert > To 3D from the context menu.

• Click on To 3D in the Drawing toolbar.

• Go to Shape > Convert > To 3D on the Menu bar.

• Click on Convert to 3D in the 3D Effects dialog. For more information, see “3D effects” below.

Rotation

To 3D Rotation Object or Convert to Rotation Object converts a 2D object into a 3D scene by rotating the object using the left edge of the bounding box around the object as the axis of rotation. Examples of 3D conversion using either of these rotation tools are shown in Figure 7. The actual 3D scene created depends on the angle and shape of the object being rotated. After selecting a 2D object in a drawing, convert it to a 3D scene using rotation using one of the following methods:

• Right-click on a 2D object and select Convert > To 3D Rotation Object from the context menu.

• Click on To 3D Rotation Object in the Drawing toolbar. By default, To 3D Rotation Object is not installed on the Drawing toolbar, but is available for installation in Visible Buttons for the Drawing toolbar.

• Go to Shape > Convert > To 3D Rotation Object on the Menu bar.

• Click on Convert To Rotation Object in the 3D Effects dialog. For more information, see “3D effects” below.

• Go to Shape > Convert > In 3D Rotation Object on the Menu bar.

Toggle extrusion

Extrusion is where parallel surfaces are moved to create a 3D shape. In Draw, the 2D surface is moved forwards out of the drawing level. At the same time the object is slightly tilted and central projection turned on, creating the impression of a 3D shape. Draw uses a default value for this extrusion (body depth) based on the size of the 2D object. The value can be changed after the extrusion, see “Editing 3D objects” below.

Extrusion conversion is carried out using Toggle Extrusion. Extrusion only works on Basic Shapes, Symbol Shapes, Block Arrows, Flowcharts, Callouts, Stars and Banners, and Fontwork. These are included as a part of the default set of tools on the Drawing toolbar, or in the Shapes deck on the Sidebar.

1. Select a 2D object in a drawing created from Basic Shapes, Symbol Shapes, Block Arrows, Flowcharts, Callouts, Stars and Banners, or Fontwork.

2. Click on Toggle Extrusion on the Drawing toolbar to convert the 2D object into a 3D shape.

3. To convert a 3D conversion back into a 2D object, select the 3D object and click on Toggle Extrusion on the Drawing toolbar.

• Note

Extrusion cannot be used on text objects created using Insert Text Box or Insert Vertical Text.

Editing 3D objects

• Note

Where 3D scenes are created from more than one 2D object, a 3D scene group is automatically created. This 3D scene group cannot be ungrouped and any editing carried out affects all 3D objects within the group. To edit an individual 3D object within this 3D scene group, enter the group. For more information on working with groups, see Chapter 5, Combining Multiple Objects.

Position, Size and Rotation

Editing the position, size and rotation of 3D objects is similar to 2D objects. See Chapter 3, Working with Objects for more information.

3D settings

Go to View > Toolbars > 3D‑Settings on the Menu bar to open the 3D‑Settings toolbar (Figure 10). The 3D‑Settings toolbar activates when a 3D shape is selected created from a 2D object using “Toggle extrusion” above.

Any changes made using the editing tools on the 3D‑Settings toolbar are applied to the selected 3D shape immediately displaying the 3D effect. Figure 11 shows an example of tilting left, increasing extrusion depth, and changing 3D color using the 3D‑Settings toolbar.

The tools available for editing 3D shapes are as follows.

Tilt Down

Tilts an object downward (horizontal axis rotation) by 5 degrees each time the tool is used.

Tilt Up

Tilts an object upward (horizontal axis rotation) by 5 degrees each time the tool is used.

Tilt Left

Tilts an object left (vertical axis rotation) by 5 degrees each time the tool is used.

Tilt Right

Tilts the selected object right (vertical axis rotation) by 5 degrees each time the tool is used.

Depth

Opens a pop-up menu where the extrusion depth can be set from an object by a fixed or custom amount.

Direction

Opens a pop-up menu where the view direction can be set to create an extrusion in either a perspective or parallel projection.

Lighting

Opens a pop-up menu where the direction and intensity of the lighting can be set when creating an extrusion.

Surface

Opens a pop-up menu where the surfaces of the object can be set as Wire Frame, Matt, Plastic, or Metal display.

3D Color

Opens a pop-up menu where the color used for the extrusion can be set. This color does not have to be the same as the color used for the original 2D object.

3D effects

The 3D Effects dialog provides options for editing 3D ready made objects, or 3D scenes. This dialog is also used to convert a 2D object to 3D using the tools in the bottom left corner of the dialog. Open the 3D Effects dialog using one of the following methods:

• Click on 3D Effects on the Standard or Line and Filling toolbar, if this has been added to the tollobar.

• Go to Format > 3D-Effects on the Menu bar.

Any 3D effects applied to a 3D scene are not carried out until Assign is selected in the top right of the 3D Effects dialog. This allows for all 3D effect changes to be carried out before application to a 3D scene.

• Notes

The 3D Effects dialog cannot be used on 3D shapes created using Toggle Extrusion because the correct formatting results will not be achieved. If the 3D Effects dialog is used in error, remove any incorrect formatting by going to Format > Default Formatting on the Menu bar.
Any options grayed out in the pages in the 3D Effects dialog cannot be used for a selected object.

3D conversion

In the bottom left corner of the 3D Effects dialog (Figure 12) are tools for converting a 2D object into a 3D scene and changing the projection used in a 3D scene.

Convert to 3D

Converts the selected object into a 3D scene. This tool works in the same way as using “Extrusion” above.

Convert to Rotation Object

Converts a 2D object into a 3D scene using body rotation. This tool works in the same way as using “Rotation” above.

Perspective On/Off

Switches perspective projection on or off for a 3D scene. Perspective projection is a technique to create a linear illusion of depth. As objects get further away from the viewer, a perspective drawing decreases in size at a constant rate.

• Note

The 3D Effects dialog has five pages to provide options for Geometry, Shading, Illumination, Textures, and Material. The tools to change pages for the different types of 3D effects are located at the top of the 3D Effects dialog.

Original object

10% rounded edges

75% rounded edges

Original object

50% scaled depth

100% scaled depth

150% scaled depth

3D Effects — Geometry

Clicking on Geometry in the 3D Effects dialog (Figure 12) opens the options available on the Geometry page to change the geometry of a 3D object.

Geometry

Defines the properties of an object in a 3D scene.

Rounded edges

Enter the amount required to round the corners of a 3D shape as shown by the example in Figure 13. The default setting for Rounded edges is 10%.

Scaled depth

Enter the amount required to increase or decrease the frontal area of a selected 3D object. Figure 14 shows an example where the Scaled depth has been decreased to 50%, then increased to 150%. The default setting for Scaled depth is 100%.

Rotation angle

Enter the angle in degrees to rotate a 2D object that has been converted to 3D using To 3D Rotation Object. Figure 15 shows an example of a 2D circle where the Rotation angle is changed to 180 degrees.

Depth

Enter the extrusion depth for the selected 2D object after it has been converted to 3D. Figure 16 shows an example of the original object converted to 3D using the tool To 3D, then increasing Depth to 3cm.

Original object

Converted using To 3D Rotation Object

Rotation angle changed to 180 deg

Original object

Converted using To 3D

Depth increased to 3cm

12 segments

24 segments

Segments

Changes the number of segments that LibreOffice Draw uses to draw a 3D object. The higher the number of segments, the smoother the object surface is. However, a high segment number may increase the time it takes to generate the 3D object on a display. Figure 17 shows the difference on a 3D sphere when the segments have been increased from 12 to 24 segments horizontally and vertically.

Horizontal

Enter the number of horizontal segments used in the selected 3D object.

Vertical

Enter the number of vertical segments used in the selected 3D object.

Object Specific

Flat

Spherical

Invert Normals off, Double Sided Illumination off Invert Normals on, Double Sided Illumination o

Invert Normals off, Double Sided Illumination on Invert Normals on, Double Sided Illumination on

Normals

Modifies the rendering style of the 3D surface.

Object-Specific

Renders the 3D surface according to the shape of the object (Figure 18).

Flat

Renders the 3D surface as polygons (Figure 18).

Spherical

Renders a smooth 3D surface regardless of the shape of the object (Figure 18).

Invert Normals

Inverted normal is a normal that is pointing in the wrong direction (Figure 19). This tells a computer that an outside face is actually an inside face when it is not. If there is a hollow design, an inverted normal can be indicated because both surfaces facing are in and out in the same model.

Double-Sided Illumination

Lights the outside and the inside of the object (Figure 19). This has only an effect, if the inside is drawn at all, see Double-Sided. This is a setting for the whole of the 3D scene and not for a single object within the scene.

Double-Sided

3D object has outside (front) and inside (back) faces (Figure 19). With Double-Sided switched off, only the outside face of an object is rendered. The effect, looking from outside, is a solid object, but, when looking from inside, the front face is transparent. If there is no view to the inside face, normal for an extruded 3D object with solid texture, Double-Sided should be switched off to improve performance during rendering. Any 3D object created using rotation often allows an inside view and it is recommended that Double-Sided is switched on.

Gouraud

Phong

Flat

3D Effects — Shading

The Shading page of the 3D Effects dialog (Figure 20) provides options to set the shading, shadow, and camera effects on a selected 3D object.

Shading

Specifies the mode of shading applied to a 3D object (Figure 21).

Gouraud

Gouraud shading mode is used to simulate the differing effects of light and color across the surface of an object. It achieves smooth lighting on low-polygon surfaces without the heavy computational requirements of calculating lighting for each pixel.

Phong

Phong shading mode is an interpolation technique for surface shading calculating the normal of a point in a polygon by interpolating the vertices normals. The angle between normal and lighting direction determines how much of the lighting is used to color the pixel.

Flat

Flat shading mode refers to depth perception in 3D models or illustrations by varying the darkness level. It assigns a single color of shading to a single segment on the surface of the object.

Shadow

Adds or removes a shadow from a selected 3D object (Figure 22). A shadow is generated only from the first light source. Enter a Surface Angle from the light source to the surface between 0 to 90 degrees to cast a shadow.

0 deg shadow

50 deg shadow

Default settings — distance 2.6 cm; focal length 10 cm

Distance 10 cm; focal length 100 cm

Camera

Sets the camera options for a selected 3D scene as if a camera is being used to take a photograph (Figure 23). Settings affect only central perspective, not parallel projection.

Distance

Enter the distance to leave between the camera and the center of the selected 3D scene. The default setting for distance is 2.6cm.

Focal length

Enter the focal length of the camera lens. A small value corresponds to a fisheye lens and a large value to a telephoto lens. The default setting for focal length is 10cm.

3D Effects — Illumination

The Illumination page of the 3D Effects dialog (Figure 24) defines how a 3D scene is illuminated and illumination settings apply to all 3D objects in a scene. Light source direction, color, and ambient light are specified for a 3D scene. By default, one light source is already selected when the Illumination page opens. A maximum of eight sources can be used and each light source can use a different color.

Light source location and color are shown in the lower right corner of the Illumination page. The vertical slider bar adjusts the lighting angle and the horizontal slider bar rotates the light about the object. Alternatively, click on the light point and drag the light source to the required position.

To change the preview from a sphere to a cube, click on the small square to the right of the horizontal slider bar and below the vertical slider bar. Each light source selected is shown as a small colored sphere in the specified color. The larger colored sphere indicates the active light source.

Selecting a light source and setting the illumination effects is as follows:

1. Select a Light source to turn the light source on. The icon changes to an illuminated bulb.

2. Click again on the selected light source to adjust the color for the light source.

3. Select a color for the light from one of the color palettes in the Light source drop-down list. A different color can be used for each light source selected.

4. Select a color from one of the color palettes in the Ambient light drop-down list to set the color of the surrounding light.

5. To deselect a light source, select a light source already selected and click on it again.

3D Effects — Textures

The Textures page of the 3D Effects dialog (Figure 25) shows the surface texture properties set for a selected 3D object. The settings in the Textures page are only available if the area fill of a 3D object is set to Gradient, Image, Pattern, or Hatch. For more information on changing area fill, see Chapter 4, Changing Object Attributes.

Type

Sets the color properties of the texture.

Black & White

Converts the texture to black and white.

Color

Converts the texture to color.

Mode

Shows or hides shading.

Only Texture

Applies the texture without shading.

Texture and Shading

Applies the texture with shading to lighten or darken the illumination.

Projection X

Sets the options for displaying the texture along the X axis. Only one of the three following options can be selected.

Object-Specific

Automatically adjusts the texture for best fit based on the shape and size of the object. This is the default setting except for extrusion objects.

Parallel

Applies the texture parallel to the horizontal axis and is mirrored on the rear side of the object. This is the default setting for extrusion objects.

Circular

Wraps the horizontal axis of the texture pattern around an object.

Projection Y

Sets the options for displaying the texture along the Y axis. Only one of the three following options can be selected.

Object-Specific

Automatically adjusts the texture for best fit based on the shape and size of the object. This is the default setting except for extrusion objects.

Parallel

Applies the texture parallel to the vertical axis and is mirrored on the rear side of the object. This is the default setting for extrusion objects.

Circular

Wraps the vertical axis of the texture pattern around an object.

Filtering

Filters out noise that can occur when a texture is applied to a 3D object.

Filtering On/Off

Applies a soft focus filter blurring the texture slightly to remove unwanted speckles.

3D Effects — Material

The settings on the Materials page of the 3D Effects dialog (Figure 26) change the 3D object appearance to represent different materials. Materials and Textures can be combined with each other to achieve the desired result.

Material

Assigns a color from a color palette. For custom colors, see Chapter 11, Advanced Draw Techniques for more information on creating custom colors.

Favorites

Select a material type for the selected object from the Favorites drop-down list.

Object color

Select a color from one of the color palettes in the Object color drop‑down list to apply to the object.

Illumination color

Select a color from one of the color palettes in the Illumination color drop-down list. This illuminates the object and brightens parts of the object which lie in shadow making the object seem more illuminated.

Specular

Sets the light reflection properties for a selected object simulating the reflecting capacity of the surface. The position of an illuminated point is determined by the setting of the first light source.

Color

Select a color to be reflected from the object from one of the color palettes in the Color drop-down list.

Intensity

Enter the intensity of the specular effect as a percentage.

Colors Dialog

Opens the Pick a Color dialog where custom colors are defined using the 2D graphic and numerical gradient chart. Any colors created are stored in the custom palette. See Chapter 11, Advanced Draw Techniques for more information on creating custom colors.

• Note

Metallic and glass surfaces do not simulate well because the appearance of these materials is produced using reflection.

• Tip

Do not use a very high brightness value for individual colors. Colors are additive and it is easy to end up with a colored area that is white.

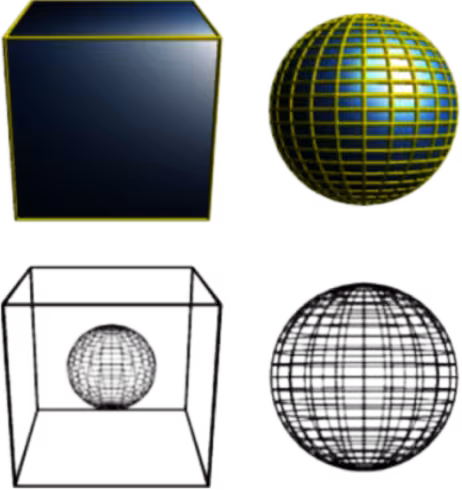

Combining objects

Multiple 3D objects cannot be combined using Shape > Combine on the Menu bar, or the keyboard shortcut Ctrl+Shift+K (macOS ⌘+Shift+K). Multiple 2D objects have to be created first, then a single 3D object created as follows (see Chapter 5, Combining Multiple Objects for more information on combining objects):

1. Create multiple 2D objects and carry out all necessary editing changes.

2. Make sure all 2D objects are selected to create a single 3D object.

3. Create a single 3D object combining the selected 2D objects using one of the following methods (examples of creating 3D objects are shown in Figure 27):

• Click on To 3D or To 3D Rotation Object on the Drawing toolbar.

• Right-click on the selected multiple 2D objects and select Convert > To 3D or To 3D Rotation Object from the context menu.

• Go to Shape > Convert > To 3D or To 3D Rotation Object on the Menu bar.

Multiple 2D objects combined

3D object created using To 3D

3D object created using To 3D Rotation Object

Assembling 3D objects

3D objects that each form a separate 3D scene can be combined or assembled into a single 3D scene. An example procedure for assembling 3D objects is as follows and shown in Figure 28:

1. Select a 3D object (for example, a cube) from 3D Objects on the Drawing toolbar, or Shapes deck on the Sidebar and place it in a drawing.

2. Select a second 3D object (for example, a sphere) from 3D Objects on the Drawing toolbar, or Shapes deck on the Sidebar and place it in the drawing.

3. If necessary, set the area fill to None and the lines to Continuous to create wire frame objects. This makes it easier to position both objects in the assembled 3D scene.

1. Select the second 3D object (sphere) and go to Edit > Cut on the Menu bar, or right-click on the object and select Cut from the context menu.

2. Double-click the first 3D object (cube) to enter the group, or go Shape > Group > Enter Group on the Menu bar.

3. Go to Edit > Paste on the Menu bar, or right-click on the first 3D object and select Paste from the context menu. The sphere appears inside the cube and is part of the group.

4. If required, edit the individual objects, or change their position within the group.

5. Double-click outside the 3D assembled scene to exit the group, or go to Shape > Group > Exit Group on the Menu bar.

• Note

The second object also reappears in its original position when Paste is carried out. This object is NOT part of the assembled 3D scene and can be deleted if necessary.

Contents

• Copyright

• Contributors

• Feedback

• Publication date and software version

• Introduction

• 3D object types

• 3D scenes

• 3D shapes

• Creating 3D objects

• 3D ready made objects

• Converting 2D objects

• Extrusion

• Rotation

• Toggle extrusion

• Editing 3D objects

• Position, Size and Rotation

• 3D settings

• 3D effects

• 3D conversion

• 3D Effects — Geometry

• 3D Effects — Shading

• 3D Effects — Illumination

• 3D Effects — Textures

• 3D Effects — Material

• Combining objects

• Assembling 3D objects
